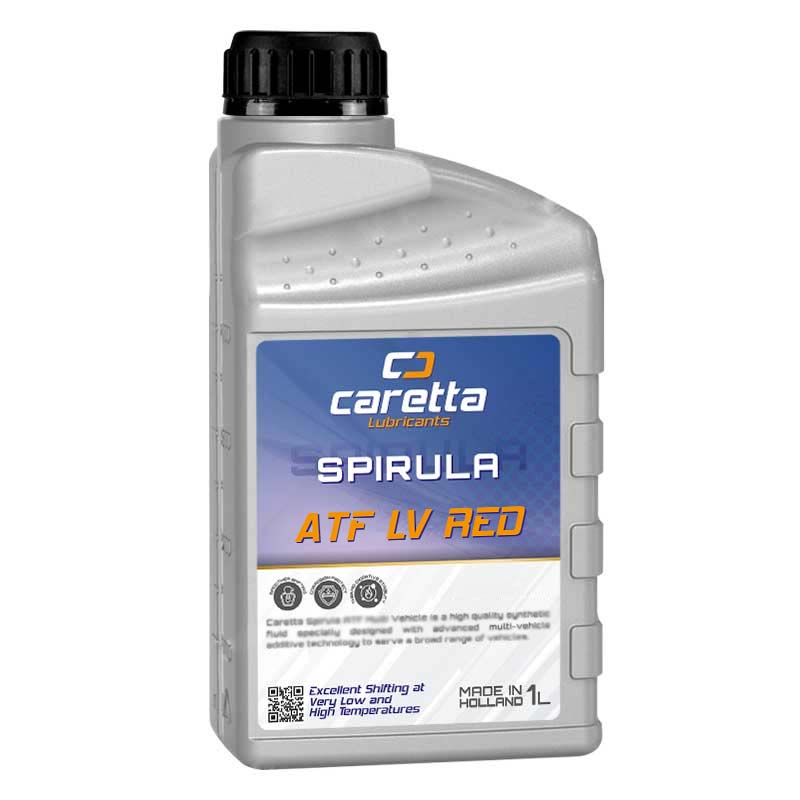

Spirula ATF LV Red
Caretta Spirula ATF LV Red is a synthetic high quality versatile automatic transmission fluid intended for 6-speed, 8-speed and 9-speed automatic car transmissions. Subjected to extreme testing, Caretta Spirula ATF LV Red guarantees maximum performance of the automatic transmission. At the same time, the wear of heavily loaded components is minimized due to the specifically matched oils.
Caretta Spirula ATF LV Red is based on a synthetic base in combination with an unique additive package to ensure the following properties:
• Excellent thermo- and oxidation stability.
• Excellent lubrication, even under extreme conditions.
• Very high protection against wear, corrosion and foam.
• High “shear stable”.
• Very low Pour point, can be used by very cold temperatures.
• High Viscosity Index.
• Compatibility with all common seal materials
Caretta Spirula ATF LV Red meets the performance criteria where the following specifications are asked:
| Aisin-Warner JWS 3309 | Aisin-Warner JWS 3324 | Aisin-Warner AW-1/AW-2 | |||||||
| Audi | BMW | VW | Opel | ||||||
| 5 HP LT71141 | LT71141 | G 050 162 | 88863400/88863401 | ||||||
| G 052 025 A2 | ATF 2/3+/6/7 | G 055 005 | VI | ||||||
| KIA | Ford | Toyota | Volvo | ||||||
| ATF SP-II/-III/-IV | MERCON | ATF T-III/-IV | 97325 | ||||||
| ATF SP-IVM | WSS M2C 922A1 | ATF D-II/-III | PN 31256774 | ||||||
| Nissan | GM | RENAULT | MAZDA | ||||||
| Matic Fluid – | DEXRON VI | Matic D2 | ATF FZ | ||||||
| C/D/J/K/P/S/W | TASA | Samsung SATF-D | ATF A7 | ||||||
Typical Analysis
| Properties | Unit | Method | Typical Value | ||||||
| Color | Red | ||||||||
| Density @15°C | kg/m3 | ASTM D4052 | 846.4 | ||||||
| Kin. Viscosity @40°C | mm2/s | ASTM D7042 | 30.0 | ||||||
| Kin. Viscosity @100°C | mm2/s | ASTM D7042 | 6.0 | ||||||
| Viscosity Index | ASTM D2270 | 154 | |||||||
| Flash Point COC | °C | ASTM D92 | >201 | ||||||
| Pour Point | °C | ASTM D7346 | -47 | ||||||
Product Code: 878463
